York Flash-Vent SS Stainless Steel Drainage Plane Flashing - 40' Roll

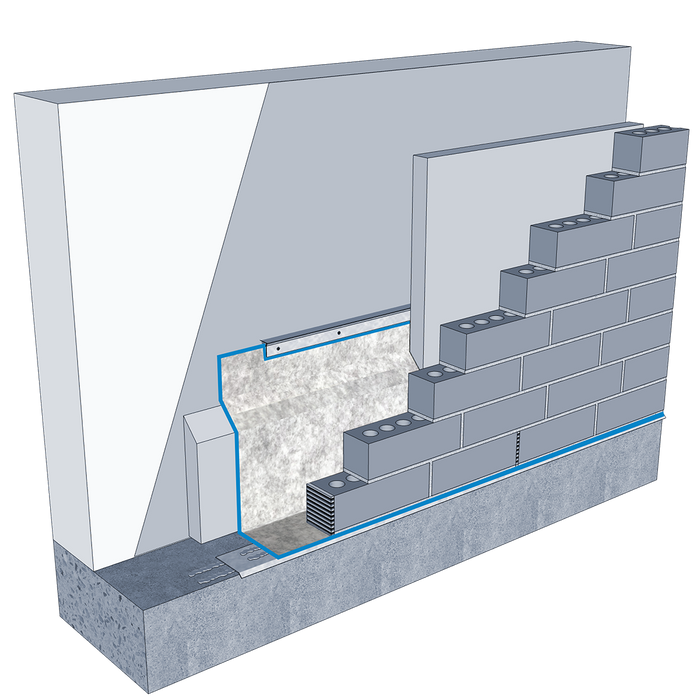

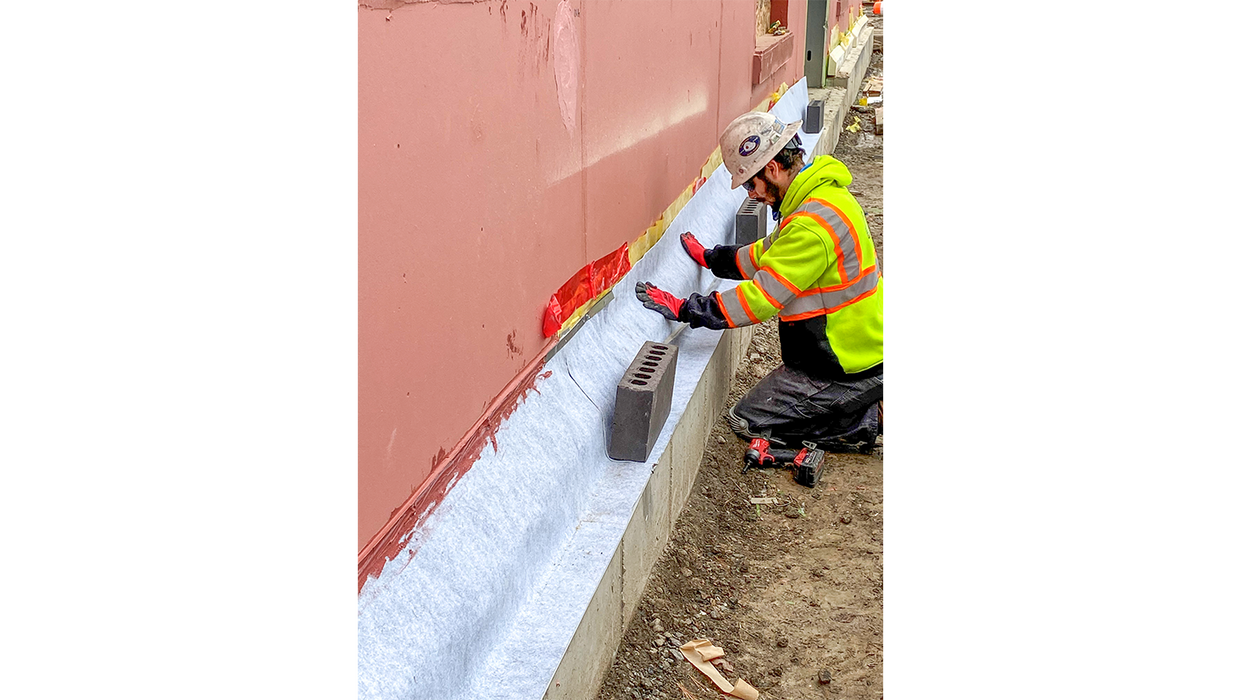

Flash-Vent SS is designed with a flexible 2 mil sheet of Type 304 stainless steel laminated to a polymer fabric and drainage fabric on the opposite side. This high-performance flashing material is ideal for cavity wall flashing, foundation sill flashing, flexible flashing, head and sill flashing, and thru-wall flashing. Flash-Vent SS comes with a life of the wall warranty, ensuring long-lasting durability.

FEATURES

• Available in self-adhered and regular options
• Life of the wall warranty
• Does not clog with mortar—eliminates the need for mortar netting
• Best-in-class puncture and tear resistance
  • Puncture: ASTM E154; 2,500+ psi
  • Tensile: ASTM D412; 100,000 psi
• Fire resistant: ASTM E84 Class A material
• Mold resistant: Passes ASTM D3273
• Made from 60% recycled stainless steel
• Continuous weep/active drainage

BENEFITS

• Ideal for cavity wall applications
• Suitable for stucco, manufactured stone, and thin brick installations

COMPATIBLE WITH

• Air barriers
• Spray polyurethane foam
• Cavity wall insulations
• Construction sealants

JOINING OF MATERIALS

• Joints shall be made by using York 304 SA and embedding each side of the connecting flashing 2" on this butyl tape. Another option is lapping the flashing a minimum of 6" and coating the contacting surfaces with an approved sealant. Using an interlocking lap per manufacturer’s detail is also acceptable with the use of an approved sealant. All edges must be sealed.


RESOURCES

• For technical data sheets and additional product resources, please contact customer service.
