Hohmann & Barnard 2-Seal Ties (125 Pieces/Box)

2-SEAL TIE

2-Seal Tie Only, Byna-Lok Hook Sold Separately

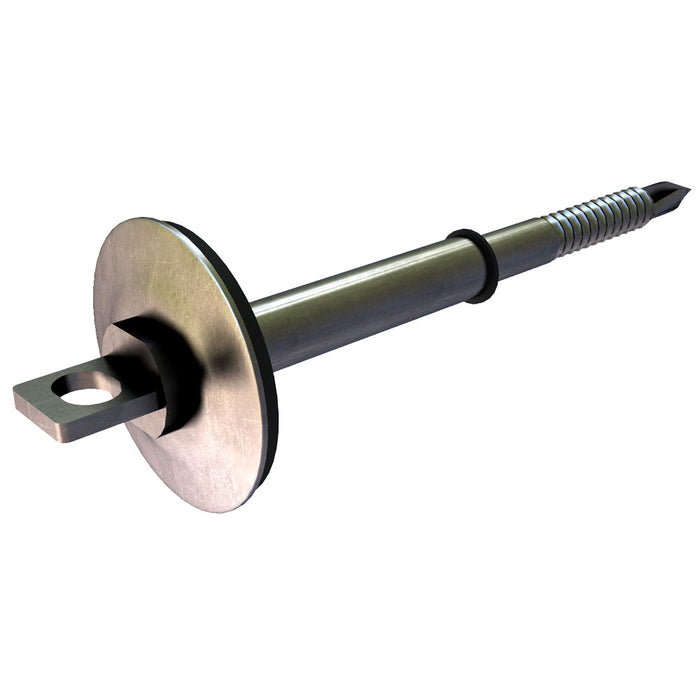

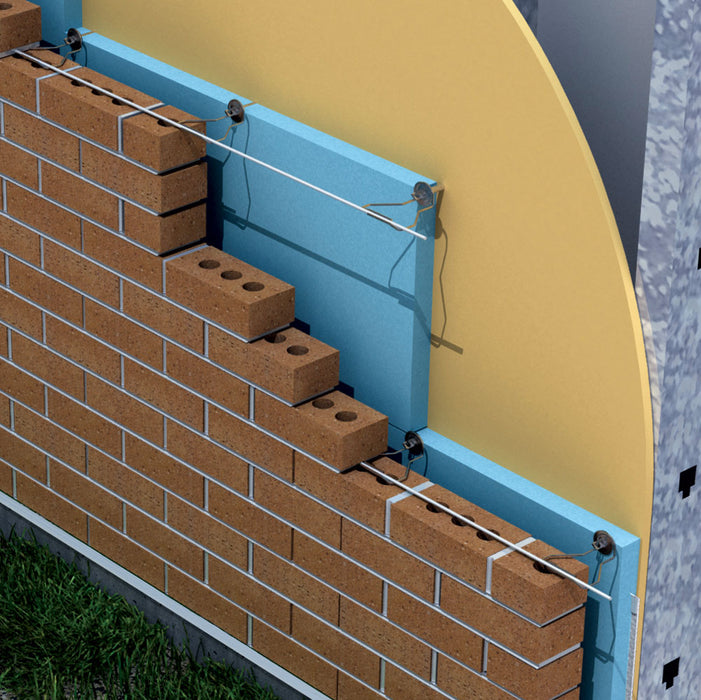

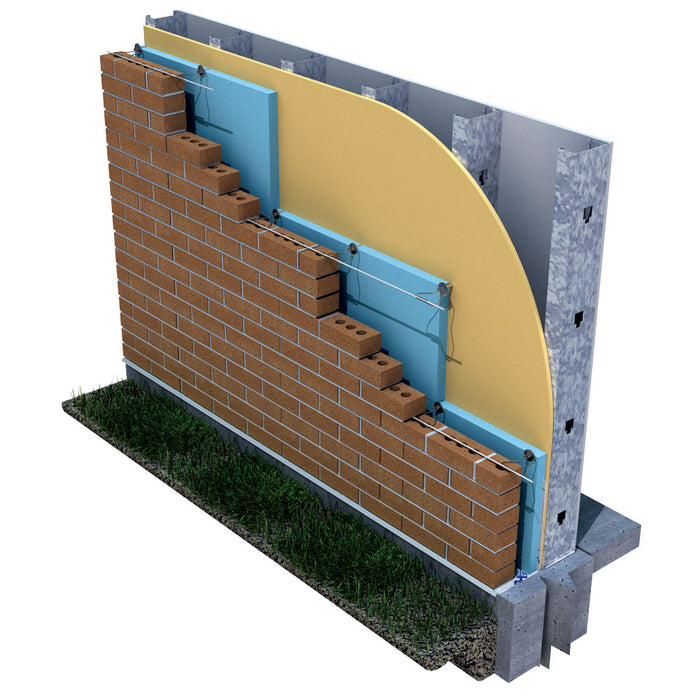

The 2-Seal Tie is a premium single screw veneer tie designed for metal stud construction. This innovative tie features a dual-diameter barrel with factory-installed EPDM washers, providing an effective seal for both the face of the insulation and the air/vapor barrier. Unlike traditional single barrel types, which can leave the vapor barrier exposed to moisture and air infiltration, the 2-Seal Tie ensures a more robust, reliable seal, even when the installation is not perfectly perpendicular to the stud.

The 2-Seal Tie is fabricated from carbon steel with a premium organic polymer coating, offering enhanced protection against corrosion. The integrated #12 screw simplifies the installation process, making this tie an efficient choice for contractors.

FEATURES

• Dual-Diameter Barrel: Seals both insulation and vapor barrier, improving overall energy efficiency
• EPDM Washers: Factory-installed to prevent air and moisture infiltration
• Improved Design: More reliable than single barrel ties
• Multiple Lengths: Available in lengths to accommodate various insulation and wallboard thicknesses

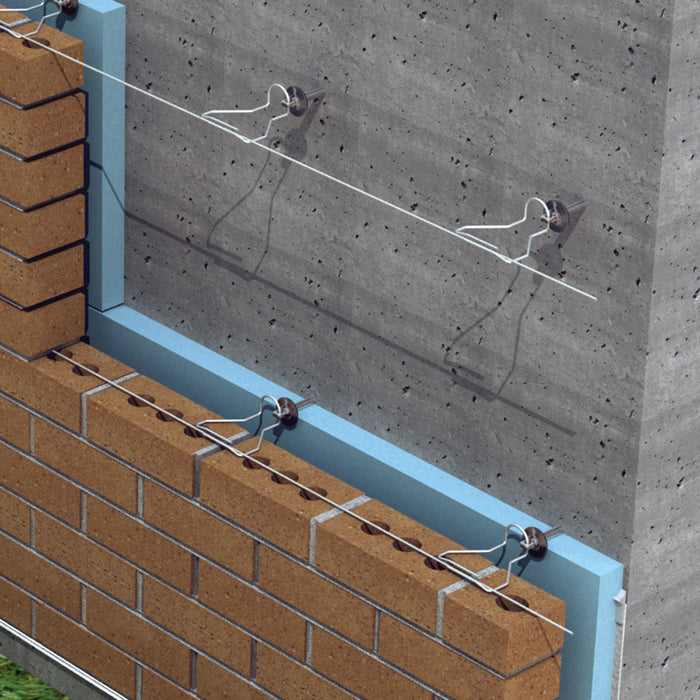

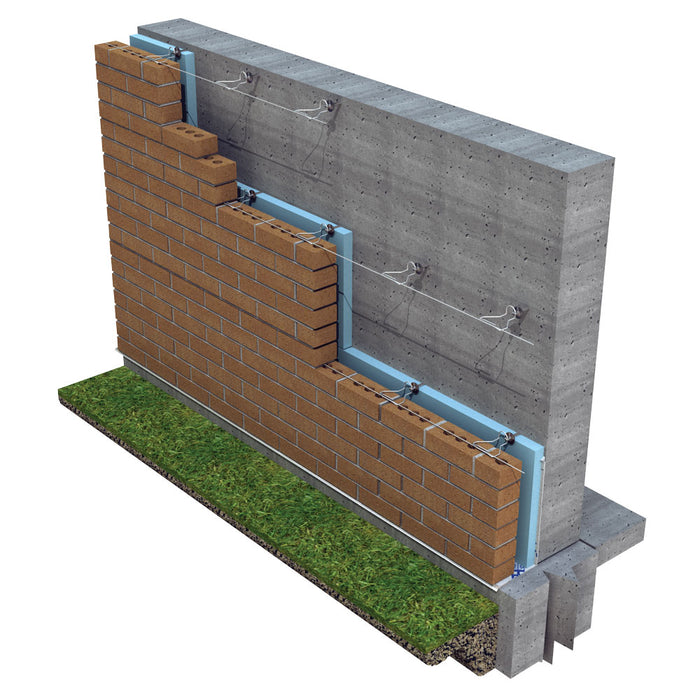

• Ideal for Metal Stud Construction: Compatible with concrete or wood stud installations
• Integrated Eyelet: Accepts 2-Seal Byna-Lok Wire Tie for masonry veneer wall mortar joints

AVAILABLE FINISHES

• Polymer Coated for superior corrosion resistance

DIMENSIONS

• Barrel Lengths: 5/8", 1", 1-1/2", 2", 2-1/2", 3", 3-1/2", 4", and 4-1/2"
• Screw Size: #10 screw integrated into the dual-diameter barrel

PACKAGING

• 125 pieces per box

NOTES

• A 2-Seal Chuck Adapter is required for installation
• The projecting eyelet accommodates a 3/16" x 3", 4", 5", 6", and 7" long 2-Seal Byna-Lok Wire Tie
• Seismic Adaptable: Can be enhanced for seismic zones with the addition of 9 gauge or 3/16" continuous wire through the swaged, overlapping legs of the wire tie

For superior sealing and a more efficient veneer anchoring solution, trust the 2-Seal Tie.
