MTI STONE CAVITY WEEP (SCV 5012)

SELF-SPACED WEEPS FOR NATURAL STONE

Stone Cavity Weep™ provides an efficient and reliable solution for drainage in natural stone installations. Its self-spaced design ensures consistent weep placement, promoting effective moisture management and preventing water damage.

FEATURES AND BENEFITS

• Designed specifically for natural stone applications.
• Self-spaced for consistent weep placement and drainage.
• Durable construction withstands mortar and environmental stress.
• Easy to install and clean for a professional finish.

INSTALLATION

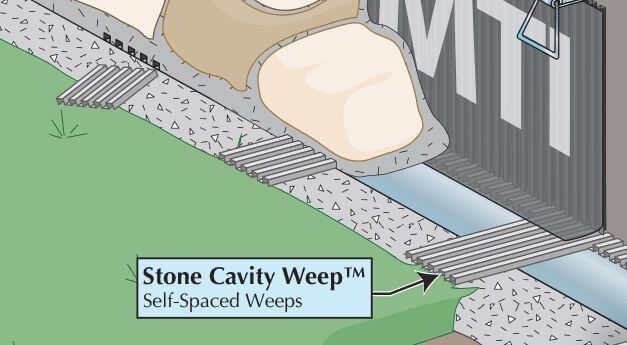

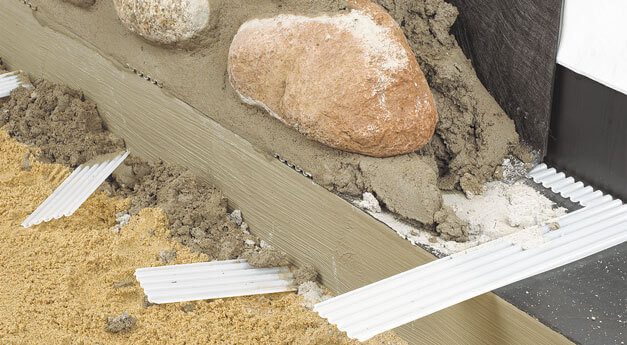

1. Place Stone Cavity Weep™ on the flashing with the continuous belt centered in the cavity and legs extending 1” to 1.5” from the wall face.
2. Apply a bed joint of mortar over Stone Cavity Weep™ and lay masonry units.
3. Tool the joints and lightly score the legs at the wall face. Crack off the legs by pushing downward while the mortar is still plastic.
4. Finish the tooled joint and brush for a clean appearance.

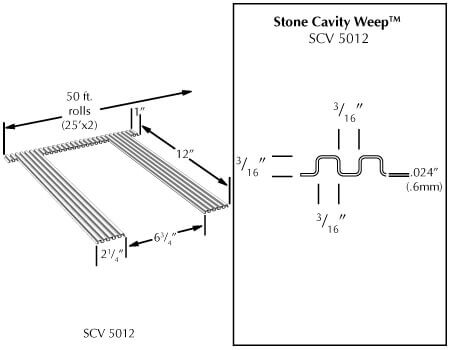

SPECIFICATIONS

• Weep Leg Width: 2.25" (57 mm).
• Spacing: 9.5" (241 mm) on center.
• Continuous Belt Width: 1" (25.4 mm).
• Total Width: 1'-0" (152 mm).
