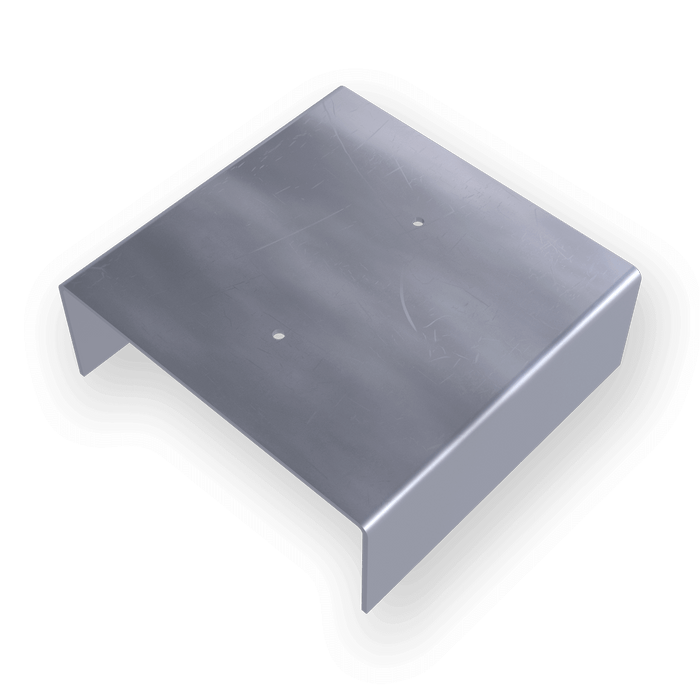

Heckmann Building Products Cap Type Stabilizing Wall Anchor (420) – Hot-Dip Galvanized

CONTROL LATERAL MOVEMENT WHILE ALLOWING VERTICAL DEFLECTION AT THE TOP OF CMU WALLS

Cap Type Stabilizing Wall Anchors are designed to resist lateral loads at the top of masonry walls while allowing for vertical deflection. This makes them ideal for conditions where structural movement must be accommodated without compromising wall stability.

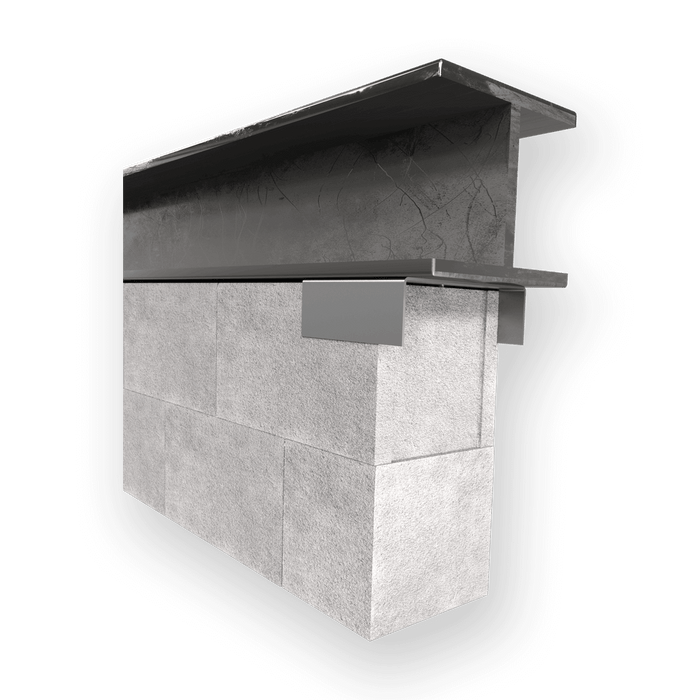

The anchor installs at the top of CMU walls, with steel bends visible above the wall surface. Built for strength and reliability, this anchor is commonly used in commercial masonry applications requiring controlled movement and secure anchorage.

FEATURES & BENEFITS

• Lateral load resistance – helps stabilize the top of masonry walls against movement
• Allows vertical deflection – accommodates structural movement without cracking
• Durable construction – manufactured from heavy-duty 12 gauge steel
• Standard configuration – designed for common 8" and 12" CMU block sizes
• Corrosion resistance – available in hot-dip galvanized for long-term durability
• Custom options available – sizes and materials can be tailored to project needs

STANDARD SPECIFICATIONS

MATERIAL & FINISH OPTIONS

• Hot-dip galvanized – ASTM A153 Class B-2 (1.50 oz/ft²)
• Stainless steel – Type 304 (Type 316 available upon request)
• Mill galvanized – ASTM A653 G60
• Plain carbon steel – ASTM A1008 / ASTM A36

APPLICATIONS

• Masonry wall stabilization
• Top-of-wall anchoring systems
• Commercial CMU construction
• Areas requiring vertical deflection allowance
